Jones and Wilkinson, a renowned zinc die casting manufacturer based in the heart of England, specialises in producing high-quality zinc die-cast components and zinc die-cast parts for diverse industries across the UK. Leveraging die-cast zinc alloys, Jones and Wilkinson delivers custom zinc castings and precision zinc castings tailored to meet the unique requirements of their clients, including zinc die cast housings and pressure die cast zinc components for various applications.
Introduction to Zinc Die Casting
Zinc die casting is a versatile manufacturing process that involves injecting molten zinc alloy, such as die-cast zinc alloys and zamak castings, under high pressure into a steel mould or die. This technique enables the production of intricate, high-precision zinc die cast parts and zinc die-cast components with an excellent surface finish and dimensional accuracy.
What is Zinc Die Casting?
Zinc metal casting, also known as zinc die casting, is a process where molten zinc alloy is injected into a steel die or mould under high pressure, allowing for the creation of complex and detailed precision zinc castings. The resulting components exhibit exceptional surface quality and dimensional accuracy, making them suitable for a wide range of applications.
Benefits of Zinc Die Casting
The zinc die casting process offers numerous advantages, including:
- Cost-effectiveness: Zinc die-cast products can be produced economically, especially for high-volume applications, making them a cost-efficient solution.
- Design flexibility: The high-pressure injection process allows for the creation of intricate and complex shapes, enabling greater design freedom.
- Suitability for mass production: With its ability to produce large quantities of consistent and high-quality zinc die-cast parts, zinc die casting is ideal for mass production.
These benefits make zinc die casting a preferred choice for various industries seeking high-quality, cost-effective solutions for their zinc alloy components and zinc die-cast products.

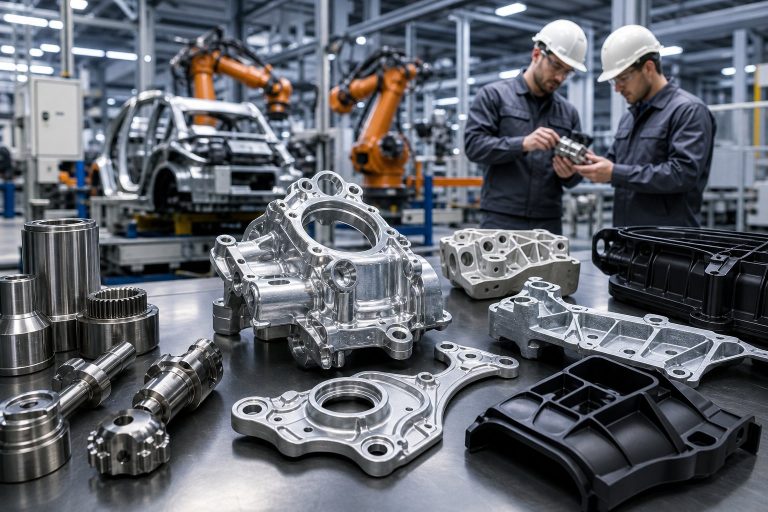

Automotive Zinc Die Castings
The automotive industry is a prominent consumer of zinc die castings, leveraging the material’s exceptional properties for a variety of applications. Zinc die-cast components are widely utilised in both interior and exterior vehicle components, contributing to improved durability, functionality, and aesthetic appeal.
Body Parts and Trims
Automotive body parts and trims are prime examples of zinc die cast parts employed in vehicles. Door handles, emblems, grilles, and other decorative elements are commonly produced using precision zinc castings, ensuring a sleek and attractive finish. The durability and corrosion resistance of zinc alloy components make them ideal for exterior applications, withstanding exposure to harsh environmental conditions.
Engine Components
Under the hood, zinc die castings play a crucial role in the manufacturing of engine components. Oil pump housings, bearing caps, brackets, and other intricate parts benefit from the strength and heat resistance offered by custom zinc castings. The ability to produce complex shapes with tight tolerances enables the production of high-performance and reliable engine components using zinc die casting.
- Oil pump housings
- Bearing caps
- Brackets
Whether it’s enhancing the aesthetics with stylish automotive zinc die castings for body parts and trims or ensuring durability and precision in engine components, the automotive industry heavily relies on the versatility and quality of zinc die-cast components.
Electrical Zinc Die Castings
The electrical industry heavily relies on zinc die castings for a wide range of applications. Zinc die-cast components and precision zinc castings are extensively used in electrical products due to their excellent electrical conductivity, corrosion resistance, and durability.
Switches and Sockets
Switches, sockets, and other electrical components often incorporate zinc die cast parts, ensuring reliable performance and longevity. The zinc alloy components used in these products offer superior electrical properties and resistance to oxidation, making them ideal for use in electrical systems.
Enclosures and Housings
Enclosures and housings for electrical equipment, such as junction boxes, distribution panels, and control units, are commonly produced using zinc die casting. This manufacturing process allows for the creation of custom zinc castings with precise dimensions and intricate designs, providing robust protection for sensitive electrical components. The ability to produce zinc die cast housings with complex shapes and features ensures ease of manufacture and assembly.
Manufacturers in the electrical industry recognize the advantages of zinc die castings, such as their high strength-to-weight ratio, dimensional accuracy, and cost-effectiveness. By leveraging this versatile manufacturing process, they can deliver high-quality electrical products that meet stringent industry standards and customer expectations.
Hardware Zinc Die Castings
The hardware industry relies heavily on zinc die castings to produce durable and reliable components. Zinc die-cast components offer an ideal combination of strength, precision, and aesthetic appeal, making them a popular choice for a wide range of hardware applications.
Door Handles and Locks
Door handles and locks are among the most common hardware zinc die castings. These components require exceptional durability and corrosion resistance, as they are subjected to frequent use and exposure to the elements. Zinc alloy components are well-suited for this purpose, providing robust performance and a long service life. Additionally, the design flexibility of zinc die casting allows for the creation of intricate and visually appealing door handles and lock mechanisms.
Brackets and Fittings
Zinc die cast parts are widely used in the production of brackets and fittings for various hardware applications. These components play a crucial role in supporting and securing various structures, ranging from furniture and shelving units to industrial equipment. Precision zinc castings ensure consistent quality and dimensional accuracy, enabling reliable performance and easy installation.
Moreover, the hardware industry often requires custom zinc castings to meet specific design requirements or accommodate unique applications. Manufacturers with expertise in zinc die casting can produce tailored components, offering flexibility and customisation options to meet diverse needs.
Overall, the hardware industry’s reliance on zinc die castings stems from the material’s exceptional properties and the process’s ability to create intricate and high-quality components. By leveraging zinc die-cast components, manufacturers can deliver durable, visually appealing, and reliable hardware products to their customers.
What are some product examples of zinc die casting?
Zinc die casting is a versatile manufacturing process that finds applications in a wide range of products across diverse industries. From automotive components to electrical housings, hardware fittings, toys, and fashion accessories, zinc die-cast products are utilised for their precision, durability, and aesthetic appeal.
In the automotive sector, zinc die castings are commonly used for body trims, engine parts, and interior accessories. These automotive zinc die castings offer exceptional strength and corrosion resistance, making them ideal for demanding environments.
The electrical industry extensively employs electrical zinc die castings for products such as switches, sockets, enclosures, and housings. These zinc die-cast products provide excellent electrical conductivity and insulation properties, ensuring reliable performance and safety.
When it comes to hardware zinc die castings, items like door handles, locks, brackets, and fittings are often manufactured using this process. The precision and strength of die-cast zinc alloys make them well-suited for these applications.
- The toy industry benefits from toy zinc die castings, such as intricate action figures and detailed miniature models, capturing the finest details and providing durability for these collectible items.
- Zinc die-cast accessories, including jewellery components and decorative embellishments, are also popular applications, leveraging the ability to create complex shapes and designs with exceptional surface finishes.
From automobiles to electrical equipment, hardware, toys, and fashion accessories, zinc die casting offers a versatile solution for producing high-quality, precision-engineered components across a wide range of industries.
Toy Zinc Die Castings
The toy industry has long embraced zinc die casting as a superior manufacturing technique for creating intricate and detailed products. Zinc die-cast components offer exceptional precision, durability, and design flexibility, making them ideal for producing highly realistic and collectible toys.
Action Figures
Action figures, with their complex designs and articulated joints, are prime examples of toy zinc die castings. These highly detailed figurines often feature intricate sculpting and movable parts that accurately replicate the characters’ appearances and poses. Zinc die cast parts ensure precise replication of facial features, costumes, and accessories, while also providing the necessary durability for playability. Popular franchises like Hasbro’s Transformers and Marvel’s superheroes extensively utilise zinc die casting to bring these beloved characters to life in collectible form.
Miniature Models
Miniature models, such as die-cast vehicles, aircraft, and trains, also benefit greatly from the precision and attention to detail offered by zinc die casting. These highly collectible items are designed to capture the authentic look and feel of their real-life counterparts, down to the smallest details. Precision zinc castings enable the replication of intricate components like engine blocks, chassis, and interior features, ensuring a level of realism that appeals to collectors and enthusiasts alike. Brands like Corgi, Matchbox, and Lledo have consistently utilised zinc die casting to produce high-quality miniature models that are both visually stunning and durable.
Manufacturers often employ custom zinc castings and precision zinc castings to create unique and limited-edition toy lines, catering to the demands of discerning collectors. The use of zinc alloy components not only enhances the products’ visual appeal but also ensures long-lasting enjoyment for both children and adult enthusiasts.
Zinc Die Cast Accessories
The fashion and accessory industry has embraced the versatility and precision of zinc die casting, incorporating zinc die-cast components into a range of stylish and functional products. From intricate precision zinc castings for jewellery to decorative accents and embellishments, zinc die cast accessories offer a unique combination of design flexibility and durability.
Jewellery Components
Zinc die casting has gained significant popularity in the jewellery industry for creating custom zinc castings of intricate components. Clasps, charms, and pendants are commonly crafted using this technique, allowing for intricate detailing and a high-quality finish. These zinc die-cast accessories are utilised in both costume and fine jewellery, catering to a wide range of styles and preferences.
- Clasps: Zinc die cast clasps offer secure closures for necklaces and bracelets, with precise mechanisms and attractive designs.
- Charms: These decorative zinc alloy components can feature intricate shapes, symbols, or initials, adding personalised touches to jewellery pieces.
- Pendants: From delicate floral motifs to bold geometric patterns, zinc die cast pendants provide a canvas for creative expression and craftsmanship.
Fashion Accessories
Beyond jewellery, the fashion industry has embraced zinc die casting for creating a wide array of accessories that combine style and functionality. Zinc die-cast components are commonly used in belt buckles, hair accessories, and decorative embellishments, ensuring precise shapes and designs that elevate any outfit.
- Belt Buckles: Zinc die cast belt buckles offer intricate detailing and durability, making them a popular choice for fashion-forward individuals.
- Hair Accessories: From hairclips and barrettes to decorative combs and hairpins, precision zinc castings allow for intricate designs that add a touch of elegance to any hairstyle.
- Decorative Embellishments: Buttons, cufflinks, and other embellishments can be crafted using zinc die casting, adding a touch of sophistication to clothing and accessories.
With their ability to capture fine details and achieve a wide range of shapes and finishes, custom zinc castings have become a go-to choice for accessory designers seeking to create unique and eye-catching products that stand out in the fashion world.
Jones and Wilkinson: A Leading Zinc Die Casting Manufacturer
Founded in 1965 as a family-owned enterprise, Jones and Wilkinson has evolved into a prominent zinc die casting manufacturer in the UK. With an unwavering commitment to engineering excellence spanning over five decades, the company takes pride in its state-of-the-art facilities and a team of highly skilled professionals.
Company Overview
Jones and Wilkinson specialises in providing zinc die casting services to a diverse range of industries. Their reputation for quality and innovation has solidified their position as a leading zinc die casting manufacturer uk, catering to the dynamic needs of businesses across the nation.
Manufacturing Capabilities
Equipped with cutting-edge technology, Jones and Wilkinson’s manufacturing capabilities are second to none. Their arsenal includes a comprehensive range of Frech die casting machines, enabling the production of pressure die cast zinc components with exceptional precision and efficiency. Additionally, the company boasts advanced robotic automation systems and a suite of secondary operations, such as machining and surface treatments, ensuring a seamless transition from concept to finished product.
Quality Assurance
At the core of Jones and Wilkinson’s operations lies an unwavering commitment to quality assurance. Adhering to industry standards and employing rigorous testing procedures, the company ensures consistent product quality across all custom zinc castings. This attention to detail and dedication to excellence have earned Jones and Wilkinson a reputation as a trusted partner for manufacturers seeking jones and wilkinson zinc die casting solutions.
Design Considerations for Zinc Die Castings
When it comes to zinc die casting design, considering part geometry and surface finish requirements is crucial for successful projects. Effective collaboration between designers and die casting experts is essential to optimise part designs for manufacturability and performance.
Part Geometry
The geometry of zinc die cast parts plays a significant role in determining their manufacturability. Certain features, such as undercuts, thin walls, and intricate details, can impact the casting process and require careful consideration during the design phase. Factors like draft angles, wall thicknesses, and radii must be carefully evaluated to ensure the die casting design is suitable for the manufacturing process.
- Undercuts and intricate details may necessitate the use of side-cores or complex die designs.
- Thin walls can lead to challenges in filling the die cavity and may require adjustments in die design or alloy composition.
- Draft angles and radii influence the ease of part ejection from the die and should be optimised for efficient production.
Surface Finish Requirements
The desired surface finish of precision zinc castings also influences the design process. Zinc die castings can achieve various surface finishes based on factors like die design, alloy composition, and post-casting treatments. Design considerations include:
- Die surface finish: The die’s surface finish directly impacts the casting’s surface quality.
- Alloy composition: Certain alloy compositions may be better suited for achieving specific surface finishes.
- Post-casting treatments: Machining, polishing, or surface treatments like plating can enhance the final surface finish.
By collaborating with die casting experts, designers can ensure that custom zinc castings meet the required surface finish specifications while maintaining optimal manufacturability.
Post-Casting Processes
After the zinc die casting process, the cast components often require additional processes to enhance their functionality, appearance, and overall quality. These post-casting processes play a crucial role in delivering finished products that meet the desired specifications and requirements.
Machining
Machining operations, such as drilling, tapping, and zinc die cast machining, are frequently employed to create additional features or achieve tighter tolerances on the cast components. CNC machining, in particular, allows for precise and intricate machining of zinc die cast parts, ensuring dimensional accuracy and enabling the incorporation of complex geometries.
Surface Treatments
To improve corrosion resistance, enhance aesthetics, or provide specific surface properties, zinc die cast components often undergo various zinc die cast surface treatments. These treatments include:
- Plating: Applying a thin coating of metal, such as nickel or chromium, to enhance corrosion resistance and appearance.
- Powder coating: Applying a decorative and protective polymer coating through an electrostatic process.
- Anodising: Creating an oxide layer on the surface of the zinc die casting for improved corrosion resistance and aesthetic appeal.
Assembly and Finishing
To deliver complete, ready-to-use products, zinc die cast components often undergo zinc die cast finishing and zinc die cast assembly operations. These processes may include:
- Deburring: Removing burrs and sharp edges from the cast components for improved safety and aesthetics.
- Polishing: Enhancing the surface finish and appearance of the zinc die castings through various polishing techniques.
- Assembly with other components: Combining the zinc die cast parts with other components, such as fasteners, gaskets, or housings, to create the final product.
These post-casting processes play a vital role in transforming the raw zinc die cast components into high-quality, functional, and visually appealing products that meet the diverse requirements of various industries.
Applications of Zinc Die Castings
Zinc die castings find widespread applications across a diverse range of industries, thanks to their versatility and precision. The zinc die casting process enables the production of intricate, high-quality components tailored to meet the specific requirements of various sectors.
Consumer Products
In the consumer products realm, zinc die cast components are extensively utilised in household appliances, sporting goods, and personal care items. These zinc die cast consumer products benefit from the material’s durability, corrosion resistance, and ability to achieve intricate designs, ensuring both functionality and aesthetic appeal.
- Household appliances, such as kitchen gadgets, vacuum cleaner parts, and home entertainment components, often incorporate zinc die cast components for their strength and precision.
- Sporting goods, including fishing reels, camping equipment, and bicycle components, leverage zinc die castings for their lightweight yet robust properties.
- Personal care items, such as hair dryers, electric shavers, and cosmetic packaging, utilise zinc die castings to create visually appealing and long-lasting products.
Industrial Equipment
The industrial sector relies heavily on zinc die cast industrial equipment for various applications. Valves, pumps, and machinery components often incorporate zinc die cast parts, taking advantage of their durability and precision. The material’s strength and resistance to wear make it an ideal choice for demanding industrial environments.
- Automotive manufacturing equipment, such as robotic components and assembly line fixtures, frequently incorporates zinc die cast parts for their reliable performance.
- Construction machinery, including power tools and heavy equipment components, benefits from the ruggedness and dimensional accuracy of zinc die castings.
- Hydraulic and pneumatic systems employed in various industries utilise zinc die cast components for their resistance to corrosion and pressure.
Medical Devices
The medical industry has also embraced zinc die cast medical devices, leveraging the material’s corrosion resistance and biocompatibility. Surgical instruments, prosthetics, and diagnostic equipment often incorporate zinc die cast components, ensuring precision, durability, and ease of sterilisation.
- Surgical instruments, such as forceps, clamps, and retractors, utilise zinc die castings for their strength and ability to withstand repeated sterilisation.
- Prosthetic limbs and orthopaedic devices benefit from the precise shapes and smooth surfaces achievable through zinc die casting.
- Diagnostic equipment, including components for medical imaging systems and laboratory instruments, incorporates zinc die cast parts for their dimensional accuracy and corrosion resistance.
Across these diverse applications, zinc die castings offer a unique combination of properties, enabling the production of high-quality, reliable, and cost-effective components tailored to meet specific industry demands.
Conclusion
The zinc die casting industry in the UK has solidified its position as an invaluable manufacturing process, offering exceptional precision and versatility across a wide spectrum of industries. From automotive components to electrical enclosures, hardware fittings, toys, and fashion accessories, zinc die cast products have become synonymous with exceptional quality, durability, and design flexibility.
Renowned companies like Jones and Wilkinson, with their extensive expertise and state-of-the-art facilities, are at the forefront of delivering innovative zinc die casting solutions. Their commitment to excellence has enabled them to cater to the diverse needs of manufacturers across the country, providing custom zinc castings tailored to specific requirements.
As the demand for high-precision components continues to grow, the zinc die casting services offered by these precision zinc castings manufacturers have become instrumental in driving innovation and ensuring superior product performance. With their ability to produce intricate designs, tight tolerances, and exceptional surface finishes, these zinc die casting suppliers are poised to shape the future of manufacturing in the UK and beyond.
FAQ
Q: What is zinc die casting?
A: Zinc die casting is a manufacturing process that involves injecting molten zinc alloy under high pressure into a steel mould or die. This technique enables the production of intricate, high-precision components with excellent surface finish and dimensional accuracy.
Q: What are the benefits of zinc die casting?
A: Benefits of zinc die casting include cost-effectiveness, design flexibility, suitability for mass production, and the ability to produce parts with intricate details and high dimensional accuracy.
Q: What are some examples of automotive zinc die castings?
A: The automotive industry extensively utilises zinc die castings for body parts and trims like door handles, emblems, and grilles, as well as engine components such as oil pump housings, bearing caps, and brackets.
Q: How are zinc die castings used in the electrical industry?
A: The electrical industry relies heavily on zinc die castings for switches, sockets, enclosures, housings, and other electrical components due to the material’s excellent electrical conductivity and corrosion resistance.
Q: What are some examples of hardware zinc die castings?
A: Zinc die casting plays a crucial role in the hardware industry, providing durable components like door handles, locks, brackets, fittings, and various hardware accessories.
Q: What are some product examples of zinc die casting?
A: Examples include automotive components, electrical products, hardware items, toys and collectibles like action figures and miniature models, fashion accessories like jewellery components and decorative embellishments.
Q: How are zinc die castings used in the toy industry?
A: The toy industry extensively utilises zinc die casting to create intricate and detailed products like action figures with articulated joints and miniature models, ensuring durability and precise replication of features.
Q: What are some applications of zinc die castings in the fashion and accessory industry?
A: Zinc die cast jewellery components like clasps, charms, and pendants offer intricate detailing and a high-quality finish, while fashion accessories like belt buckles, hair accessories, and decorative embellishments are often zinc die cast.
Q: Can you tell me about Jones and Wilkinson, a leading zinc die casting manufacturer in the UK?
A: Jones and Wilkinson is a family-owned business established in 1965, with over 50 years of engineering excellence in zinc die casting. They boast state-of-the-art facilities, skilled professionals, and a range of Frech die casting machines, robotic automation, and secondary operations.
Q: What design considerations are important for zinc die castings?
A: Part geometry and surface finish requirements play a significant role in the design process for zinc die castings. Collaboration between designers and die casting experts is essential to optimise part designs for manufacturability and performance.
Q: What are some post-casting processes for zinc die castings?
A: Zinc die cast components often undergo post-casting processes like machining (drilling, tapping, CNC machining), surface treatments (plating, powder coating, anodising), and assembly and finishing operations (deburring, polishing, assembly with other components).
Q: What are some applications of zinc die castings across industries?
A: Zinc die castings find applications in consumer products (household appliances, sporting goods, personal care items), industrial equipment (valves, pumps, machinery components), and medical devices (surgical instruments, prosthetics, diagnostic equipment).
